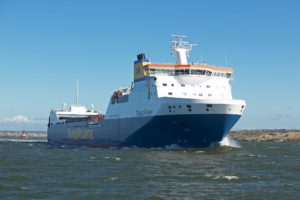

P229

Ro-Ro

Owner / Shipname
AkerFinnyards (Finland) / Transpaper - Transpulp - Transtimber
IMO Number
9334959 - 9343261 - 9343273
Year
2006 ÷ 2007
Class
DNV General Cargo Carrier RORO
DNV + 1A1 ICE-1A* E0
NAUT-AW TMON CLEAN COMF - V(2) BIS
Yard /
Number
Aker Finnyards / NB 448 - 449 - 450
Main Particulars
LOA 188,70 m
LBP 180,50 m
BOA 26,00 m
Design draught 7,50 m
GT 23.130
DWT 13.800 t
Loading Capacities /
Free Height
Lower deck: 24 SECU / 5.20 m
Main deck: 62 secu / 5.20 m
Weather deck: 69 secu / 7,20-5,20 m
Total = 155 SECU (Stora Enso Cargo Unit)
Accomodation
Crew cabins: 6 x 2
Driver cabins: 12 + 2
Machinery
Main engines: MAN Diesel & Turbo 2 x 9L48 / 60B 9.000 kW 500 RPM
Auxiliaries: 2 x Wartsila W8L20 1.500 kW each
Propellers: 1 x CPP type propeller
Bow thrusters: 2 x 800 kW Stern thruster: 1 x 800 kW
Speed
Service speed: 20 kn
Tank Capacities
Heeling tanks: 1.620 m³
FW: 147 m³
MDO: 333 m³
WB: 11.069 m³
HFO: 989 m³
