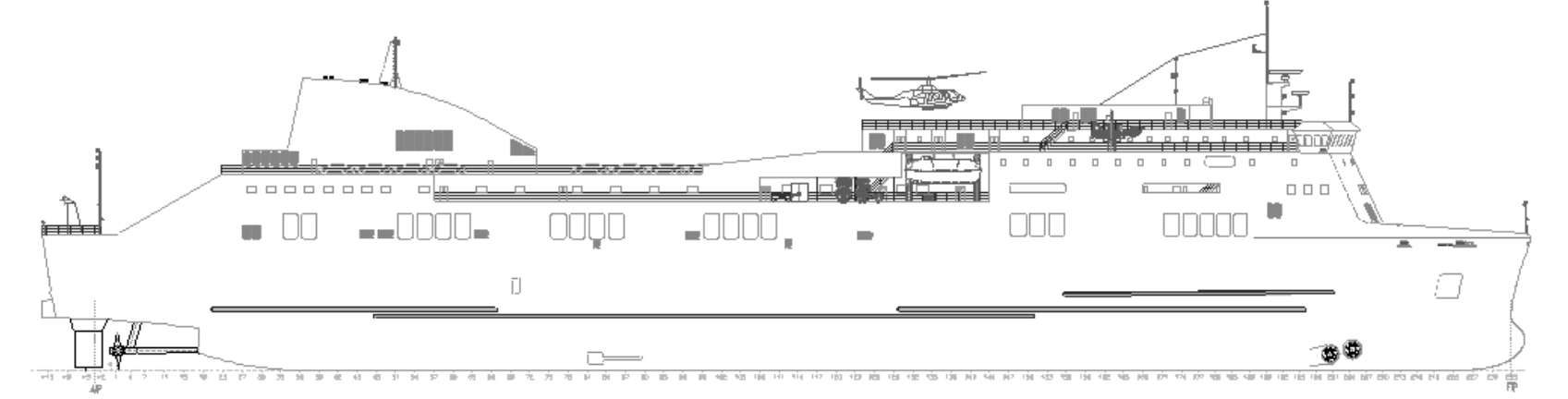

P244

Ro Pax

Owner / Shipname
Cartour Beta – Cartour Gamma
IMO Number
9332559 - 9349758
Class
RINA C Ro-Ro Passenger ship - Unrestricted Navigation; AUT-UMS - Ice Class -1C-
Yard / Number
Cantiere Navale Visentini / NB 214 - 215
Main Particulars
LOA: 186,50 m
LBP: 177,40 m
BOA: 25,60 m
Design draught: 6,60 m
DWT abt: 7.000 t
Loading Capacities
Lower hold: 249 lm = 19 trailers
Main deck: 888 lm = 70 trailers
Weather deck: 972 lm = 75 trailers
Total: 2.244 lm = 173 trailers
Free height
Lower hold: 4,32 m
Main deck: 4,88 m
Weather deck: 5,12 m
Accomodation
Passenger cabins (4 berth cab.): 117
Passenger cabins (2 berth cab.): 6
Disabled cabins (4 berth): 1
Crew cabins: 32
Pullman seats: 138
Manoeuvring plants
Bow thrusters: 2 x 1,300 kW each
Fin stabilizers
Propelling machinery
Main Engines: 2 x 10800 kW at 500 rpm diam 4800 mm
Auxiliaries: 3 diesel Generators x 1800 kW eache
Speed
Service speed: 24 kn
