P270

Ro Pax

Owner / Shipname
Epic Shipping UK, Operator: LD LINES, NORFOLK LINE, T-LINK
Norman Voyager – Scottish Viking – Akeman Street
IMO Number
9420423 – 9435454 - 9435466
Year
2008 - 2009
Class
RINA C Ro Ro Passenger Ship, Unrestricted Navigation, AUT UMS Ice Class – 1C
Yard / Number
Cantiere Navale Visentini / NB 220 – 221 - 222
Main Particulars
LOA 186,50 m
LBP 177,40 m
BOA 25,60 m
Design draught 6,70 m
GT 26.900
DWT abt 7.000 t
Loading Capacities
/ Free Height
Lower hold : 250 lm - Free heigth 4.335 m
Car deck 2 - Free height 1.955 m
Main deck : 914 lm - Free height 4.887 m
Weather Deck (+ fixed ramp) 1.126 lm / Free height 5.112 m
Car Deck
Deck 2 : no. cars 83
Deck 5 : no. cars 122
Accomodation
Passenger cabins (2+2) : 107
Disables cabins (1+1) : 2
Crew cabins : 31
Avion seats : 157
Machinery
Main Engines : 2 x 10.800 kW each 500 RPM
Auxiliaries : Diesel generators 1.800 kW each
Propellers : 2 - Diameter 4,8 m
Bow thrusters : 2 x 1.300 kW each
Fin stabilizers
Speed
Service speed : 24 kn
Tank Capacities
Heeling tanks : 792 m³
FW : 376 m³
MDO : 310 m³
WB : 5.965 m³
HFO : 1.473 m³
Supply

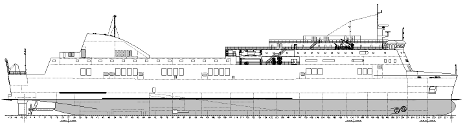

GA Plans, class drawings, workshop drawings
Stability according to Solas, Stockolm Agreement
