P354

Ro-Ro

Owner / Shipname

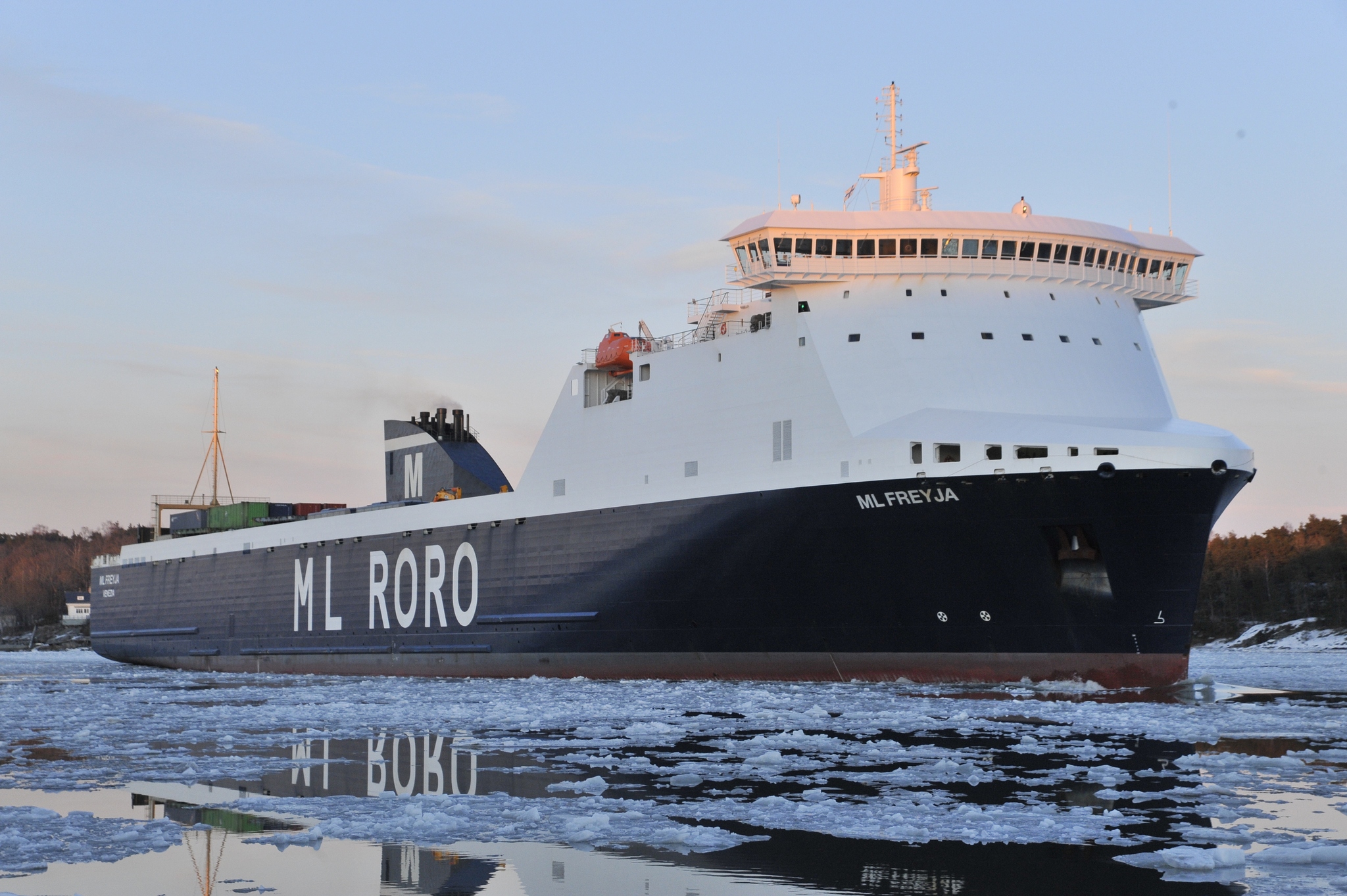

M L RORO / ML FREYJA
IMO Number
9799977
Year
2017
Class
RINA C Ro-Ro Cargo ship equipped for carriage of container, Unrestricted Navigation,
Aut-Ums, Aut-Port, Star Hull NB, ICE class 1A, Green Star 3 Design, Inwatersurvey
Yard / Number
Cantieri Navali Visentini / C232
Main Particulars
LOA 191,40 m
LBP 181,85 m
LAW 184,00
BOA 26,20 m
Scantling draft 7,60 m
Design draft 7,30 m
Service draft 6,10 m
DWT abt 11.060 t
Loading Capacities
/ Free Height
Deck 1 : 407 lm
Deck 2 : 1.109 lm
Deck 3 : 1.170 lm
Ramp: 68 lm
Tot: 2754 lm
Containers
20 ft: 516 (max stack 60 t)
40 ft: 228 (max stack 80 t)
Accomodation
Crew cabins (isolated included) : 24
Machinery
Main Engines : 2XMAK 6 M43 C 6,000 kW 500 RPM
Auxiliares : 2 x 1.360 kW 1.800 RPM
Propellers : 2 x NPS / Man-Alpha, CPP
Bow thrusters : 2 x 1.000 kW
Speed
Service speed at service draft : 19 kn
Daily Fuel Consumption
Main engine : 30 t/day @ design draft, 19 kn
Tank Capacities
HFO : 666 m³
LSFO : 281 m³
MDO : 166 m³
WB : 5.175 m³
